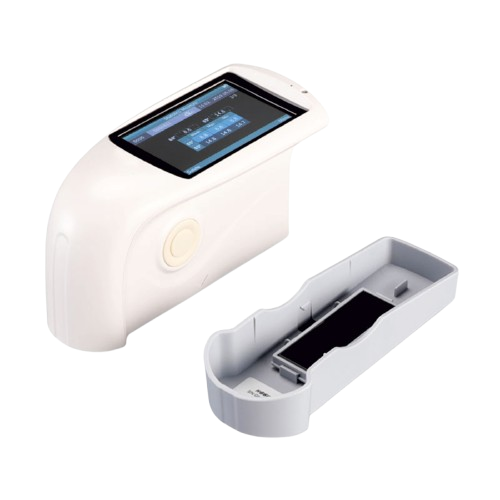

60° Gloss Meter

Model: DGM60

60° Gloss Meter
ModelDGM60
Measuring Angle60°Comply with standard ISO 2813, ASTMD 523, ASTM D 2457
Measuring Area(mm)9x15
Measuring Range0~1000GU
Division Value0.1GU
Measurement RangeRepeatabilityReproducibility0-10GU 10-100GU 100-1000GU± 0.1GU ± 0.2GU ± 0.2%GU± 0.2GU ± 0.5GU ± 0.5%GU
Chromacity CorrespondingCorresponding with CIE 1931(2°) under CIE C light source
Errors±1.2 , ± 1.2%
Measuring Time0.5s
DimensionL*W*H : 160mm*75mm*90mm
Weight350g
Battery3200mAh Li-ion Baery, >10000 mes(within 8 hours)
DisplayTFT 3.5 inch
InterfaceUSB/RS-232
Data SaveBasic mode: 1000, Statistical Mode: 5000, Continuous mode: 5000
StorageBasic mode: 1000
SoftwareGQC6 Quality Control Software with QC reportprinting functions and more extended functions.
Operation Temperature0~40°C (32~104°F)
Storage Temperature-20~50°C (-4~122°F)
Humidity<85% relative humidity, no condensation
  • Power Adapter
  • USB cable
  • User Manual,
  • GQC6 software CD
  • Calibration Plate
  • Miniature Printer
Coating & Color

60° Gloss Meter

Model: DGM60
DGM60 gloss meter features with 60° angle, manufactured according to ISO2813. It is also compatible with the standards of ASTM D523, ASTM D2457. DGM60 conforms to corresponding with CIE 1931(2°) under CIE C light source. DGM60 gloss meter can test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished le, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.
Key Features
  • 60° angle for semi gloss
  • Display 5 sets of measurement data, good for comparison
  • Connuous mode to check uniformity over large areas
  • Connect to PC, more extend functions
  • Input gloss value manually
  • Large touch screen operation, easy to use
  • Beauty appearance, good man-machine communication interface
  • Powerful functions to meet many different requirements
  • Built-in lithium ion rechargeable battery.

Interested in 60° Gloss Meter?

Get pricing, specifications and availability from our instrument specialists.

Request a Quote →
