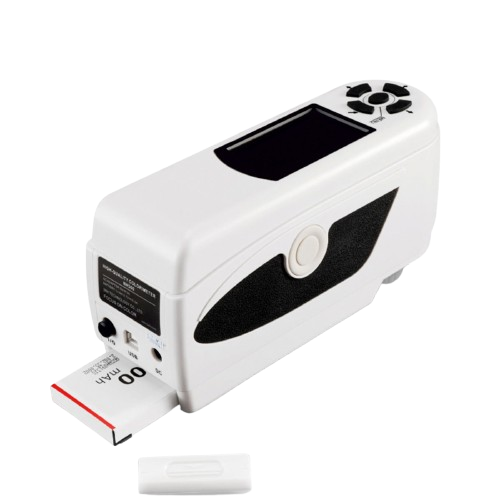

Portable Colorimeter

Model: ST-PC30

Portable Colorimeter
ModelST-PC30
Illuminating/Viewing Geometry8/d
Measuring ApertureΦ8mm
DetectorSilicon photoelectric diode
Color SpaceCIEL*a*b*C*h* CIEL*a*b*
Color Difference FormulaΔE*ab ΔL*a*b ΔE*C*h
Light SourceD65
Light Source DeviceLED blue light excitation
Errors Between Each Equipment≤0.40ΔE*ab
Storage100pcs standards 20000pcs samples
RepeatabilityStandard deviation within ΔE*ab 0.07 Average of 30 measurements of standard white plate
Weight500g
Dimension205×70×100 mm
Power sourceRechargeable lithium-ion baery 3.7V@3200mAh
Lamp Life5 years, more than 1.6 million measurements
Charging Time2 hours (first me 8 hours--100% electricity)
Measuring TimesBefore Recharging more than 3000 mes
Operating Temperature/ Humidity Range-10~40℃, relative humidity 0~85% with no condensation
Data InterfaceUSB
Printer (optional)Miniature thermal printer
  • Miniature thermal printer
Coating & Color

Portable Colorimeter

Model: ST-PC30
ST-PC30 high-quality portable colorimeter has adopted multi-channel color sensors of international brands, more stable IC platform as well as efficient and accurate algorithms to provide users with accurate and fast color management and application. ST-PC30 is also designed with ergonomics and humanized operation and it has applied for a number of patents.
Key Features
  • Leading Humanity Design and Convenient Operation

Auto White and Black Calibration at Startup

Structure Design in line with Ergonomics

Easy-to-use Operation Interface

  • Stable Measurement Performance

The average fluctuation of ∆E is less than 0.07, actually more in 0.03~0.06. Portable structure design which is more conductive to keeping the instrument stable when using.

  • Convenient and Fast Locating

Illumination locating is a fast, simple and convenient locating function which is the original function by Stalwart.

  • PC Software—Realize More Function Expansion

​ Stalwart has the intellectual property of PC software. The corresponding software serial number and password protection are configured in Sralart colorimeter. Be able to perform color difference analysis, color difference cumulative analysis, chromacity index, color sample database management, simulating object color, etc.

  • Advanced Power Management Design

Stalwart is the first enterprise using high capacity Li-ion battery in colorimeter. Stalwart Li-ion battery can be repeatedly charged which will save cost. Meanwhile, it can measure more than 3000 times on one charge to ensure the stability of long me measurement.
