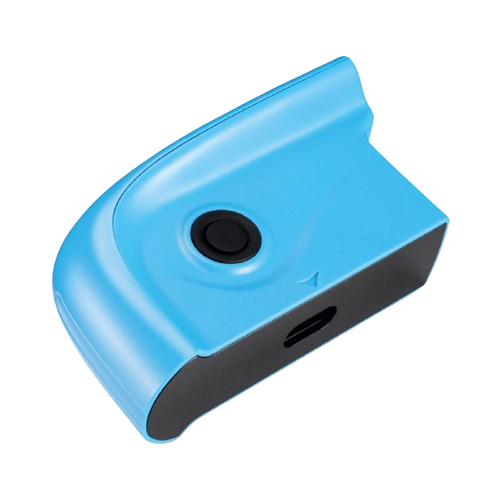

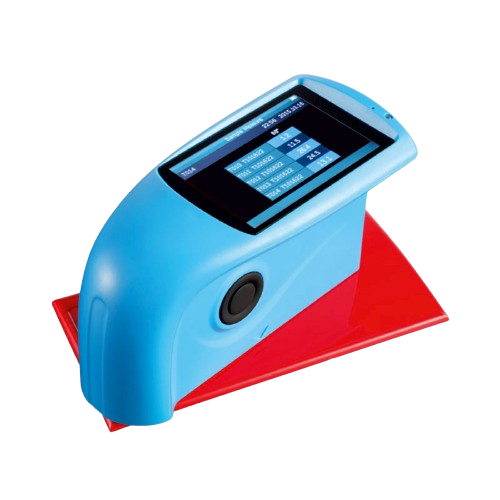

Economical Gloss Meter

Model: EGM60 Series

Economical Gloss Meter
ModelEGM60EGM60S
Measuring Angle60°Comply with standard ISO 2813, ASTM D 523, ASTM D 245760°Comply with standard ISO 2813, ASTM D 523, ASTM D 2457
Measuring Area(mm)9x159x15
Measuring Range0~300GU0~200GU
Division Value0.1GU1GU
Measurement RangeRepeatabilityReproducibility0-10GU 10-100GU 100-300GU± 0.1GU ± 0.2GU ± 0.2%GU± 0.2GU ± 0.5GU ± 0.5%GU0-200GU±1GU±1GU
Chromacity CorrespondingCorresponding with CIE 1931(2°) under CIE C light sourceCorresponding with CIE 1931(2°) under CIE C light source
Errors±1.5 , ± 1.5%±1.5 , ± 1.5%
Measuring Time0.5s0.5s
DimensionL*W*H : 160mm*75mm*90mmL*W*H : 160mm*75mm*90mm
Weight350g350g
Battery3200mAh Li-ion Battery, >10000 mes (within 8 hours)3200mAh Li-ion Battery, >10000 mes (within 8 hours)
DisplayTFT 3.5 inchTFT 3.5 inch
InterfaceUSB/RS-232USB/RS-232
StorageBasic mode: 1000Basic mode: 1000
SoftwareGQC6 Quality Control Software with QC reportprinting functions and more extended functions.GQC6 Quality Control Software with QC reportprinting functions and more extended functions.
Operation Temperature0~40°C (32~104°F)0~40°C (32~104°F)
Storage Temperature-20~50°C (-4~122°F)-20~50°C (-4~122°F)
Humidity<85% relative humidity, no condensation<85% relative humidity, no condensation
  • Power Adapter
  • USB cable
  • User Manual
  • GQC6 software CD (except EGM60S)
  • Calibration Plate
  • Miniature Printer
Coating & Color

Economical Gloss Meter

Model: EGM60 Series
EGM60 Series gloss meter features with 60° angle, manufactured according to ISO2813. It is also compatible with international standards of ASTM D523, ASTM D2457. EGM60S conforms corresponding with CIE 1931(2°) under CIE C light source.EGM60 Series gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products marble, granite, vitrified polished le, pottery brick and porcelain, plastic, paper hardware industries, etc.
Key Features
  • 60° angle for semi gloss
  • Concise appearance, feel good
  • Display 5 sets of measurement data, good for comparison
  • Built-in lithium ion rechargeable battery
  • Basic model measurement can meet basic glossiness testing requirements
  • Connect to PC, more extend functions
  • One button for all angles measurement at the same location
  • Comply with international standards
  • Stable performance, easy to read data.
