-86°C EcoTouch ULT freezer

Model: STF-338E

-86°C EcoTouch ULT freezer
ModelSTF-338E
Technical DataTypeUpright
Capacity (L/cu ft)338/11.93
Inner doors2 pcs, SUS304 forming door
Shelves3 pcs, SUS304
Inner chamber materialSUS304
Cooling typeDirect cooling
RefrigerantHydrocarbon, CFC Free,Non greehouse
Noise level (dB)53
TemperatureAmbient temperature(ºC)10~32ºC
Temperature range (ºC)-40~-86ºC
Cooling & ControllerCoolingTwo compressors
Systemcascade system
Compressor BrandSECOP
SensorPT100
ControllerMicroprocessor
Display & Control7" Touch Screen
Electronic parameterVoltage/Frequency220~240V 50/60Hz 110V 60Hz
Power (W)870
Power Consumption (kWh/24h)6.75
Vials load2ml Vials (pcs)19200
Size & WeightInternal (W*D*H) mm488×607×1140
External (W*D*H) mm880×980×1940
Packing (W*D*H) mm937×1075×2135
Net/Gross weight (kg)190/220
Alarm SystemHigh/low temperature
Power off failure
Abnormal voltage
Sensor error
Filter screen check
Controller failure
Low battery
Condenser malfunction
High ambient temperature
Door ajar
  • 4 Caster
  • Test hole/Diameter 2/25mm
  • Remote alarm contact
  • USB Port
  • RS232/485 port
  • Temperature recorder
  • Freezer racks
  • CO2 backup system
  • LN2 backup system
-86°C ULT freezer

-86°C EcoTouch ULT freezer

Model: STF-338E

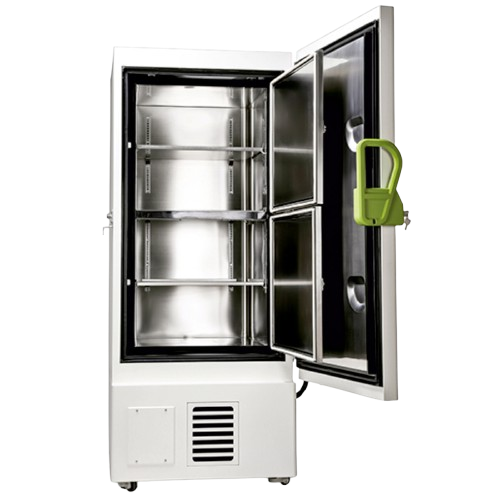

-86 EcoTouch ULT freezer is designed with 7” touch screen for easy observation and operation. It is built by two compressors' cascade refrigerant system which ensure the valuable bio samples in reliable and safety storage temperature. It is also energy saving by using hydrocarbon refrigerant. Interior is made of #304 stainless steel for easy cleaning and durable use. The EcoTouch ULT freezer optimizes sample storage capacity within a small footprint. There are 4 models with different capacities for users optional.

Key Features

A Smart Freezer

  • 7” touch screen, easy observation & convenient operation
  • Historical temperature curve and alarm records on screen
  • Self-diagnostic, automatic check & alarm for key components
  • Standard USB port, download data conveniently

A Green Freezer

  • Non greenhouse gas is used, an environmental friendly freezer.
  • Hydrocarbon two compressor cascade cooling system for super low power consumption.

A User-Friendly Freezer

  • SUS304 interior with round corner for easy cleaning & rust free
  • Document pocket to put paper, create a stylish lab
  • Maximum sample storage capacity with an optimum footprint
  • Special noise reduction design, a real quiet lab partner
  • Optional electric lock for safety and convenient administration
