Model	SFA-100A/SFA-100E/SFA-100R
Model Difference	Model A: Standard Model R:A+drying Model E:A+plus (0-9 times)
Capacity(L)	100
Outer Dimention (LWH,mm)	620x680x1222

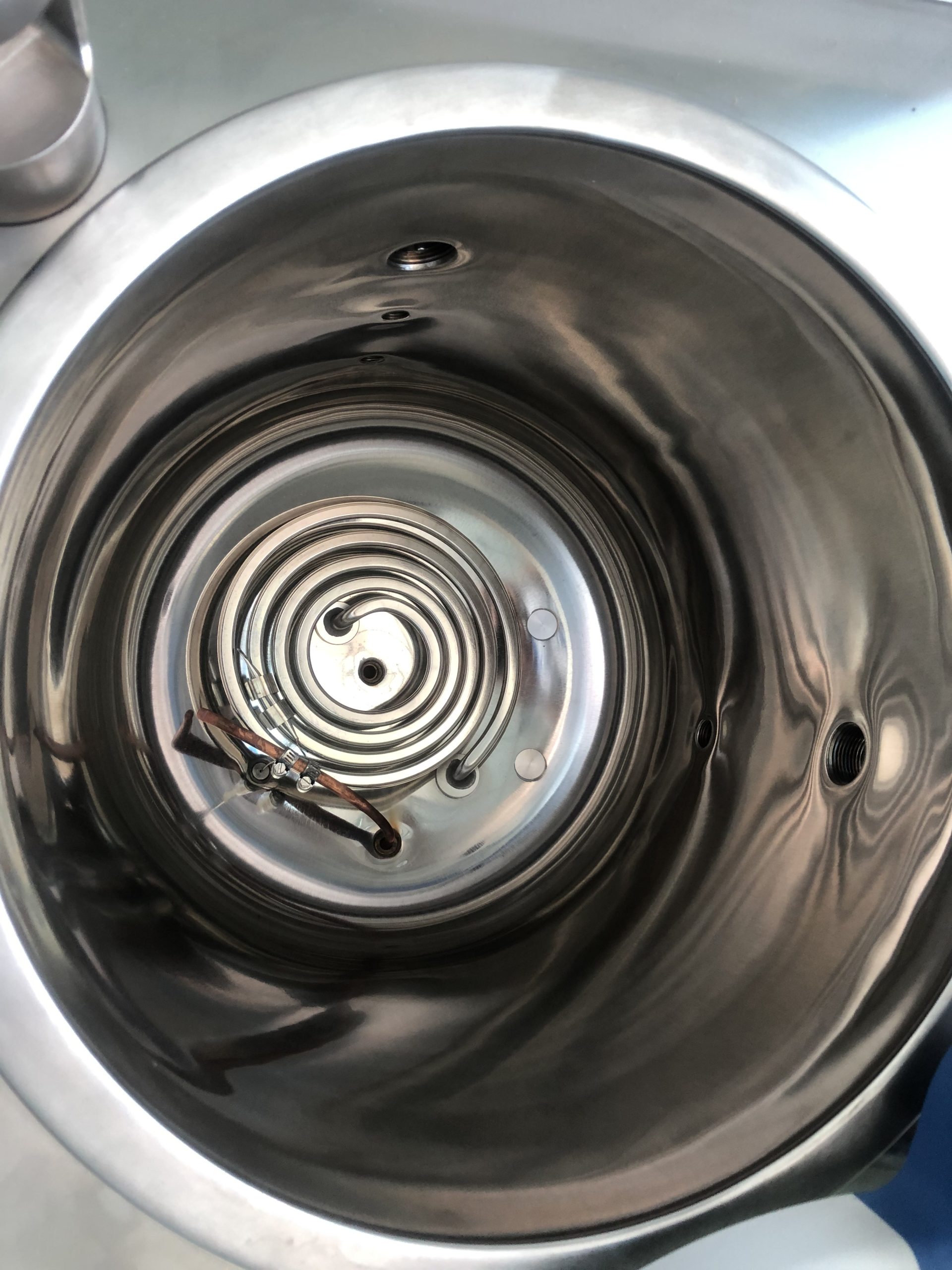

Sterilization Chamber (Dia*mn)	Ø400x889
Rated Power Supply	220V 50Hz,60Hz
Rated Power(W)	4600
Working Environment	5˚C ~45˚C, relative humidity 10%-85%
Chamber Material	SUS 304 stainless steel
Sterilization temperature	105-135˚C
Stainless steel basket (Dia*H,mn)	( 360x220)x3
Sterilization time range	1-300 min
Drying time range	1-300 min (drying function only for R Series
Range of pressure guage	-0.1-0.5Mpa
Controller	Microcomputer control System
Mode	Solid Mode, Liquid Mode
Safety Device	Self-induction interlocking device, lid closing checking, over temperature protection system, dry scorch protection, over pressure protection, safety valve, over current and short circuit protection, cover checking system, electric leakage protection, scale protection, automatic failure-inspection system
Standard Accessories	Stainless steel baskets, waste bottle, water plate, drainage hose
Optional Parts	Printer, printing set, stainless steel pails

Universal Autoclave

Model: SFA-100

Key Features

Microcomputer control system
Sterilization process can be pre-set and completed automatically
Solid mode, liquid mode

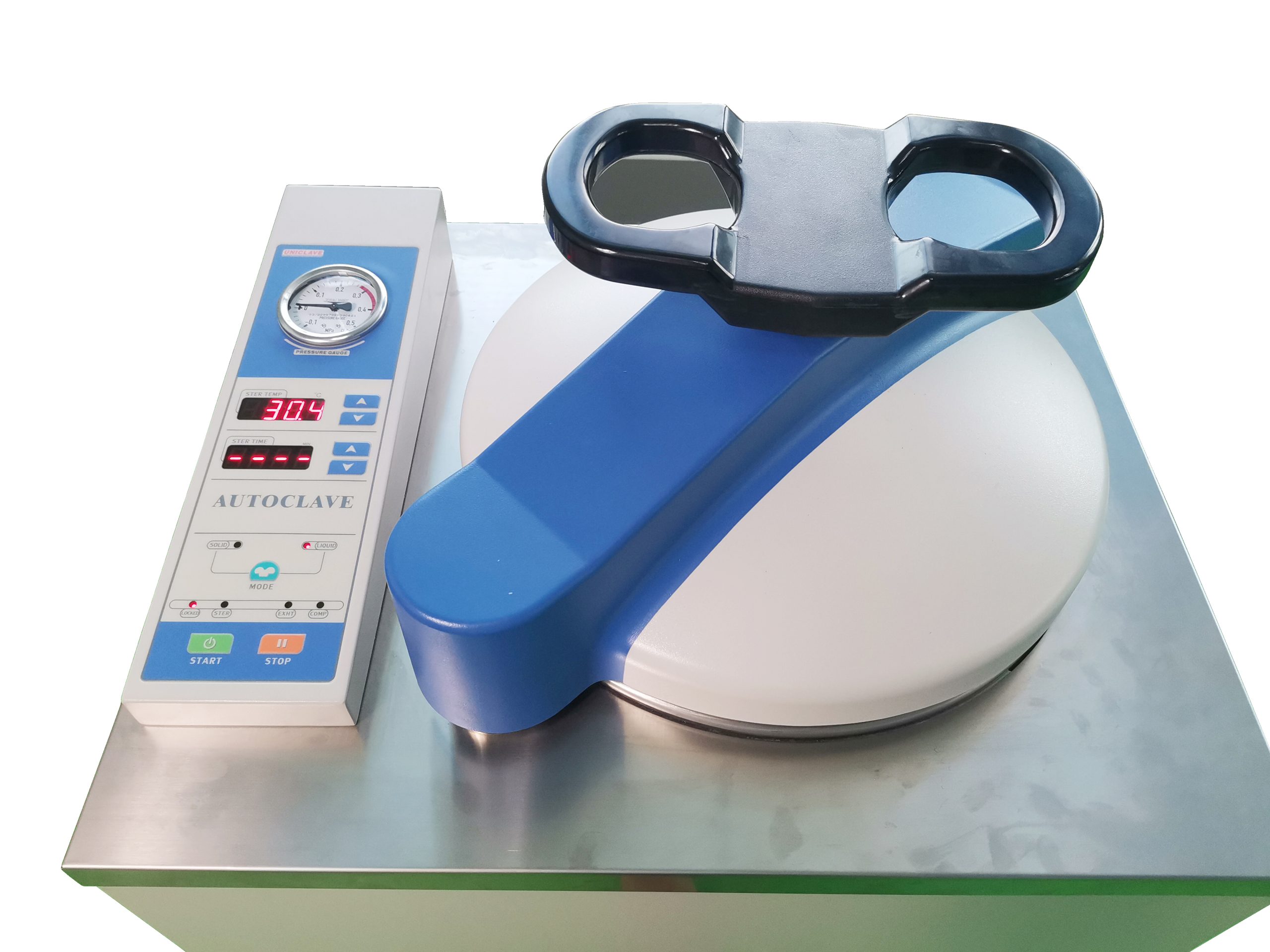

Simple and easily understandable control panel to show the sterilization temperature, sterilization time and dying time at the same time, pressing separate key to set the temperature and time makes the operation easier
System automatically monitors the discharging of the cold air to guarantee a pure steam sterilization environment and optimal sterilization effects
LED screen clearly shows the dynamic sterilization process
13 error detection procedures to monitor the normal operation of the instrument
